High Tractive Effort.

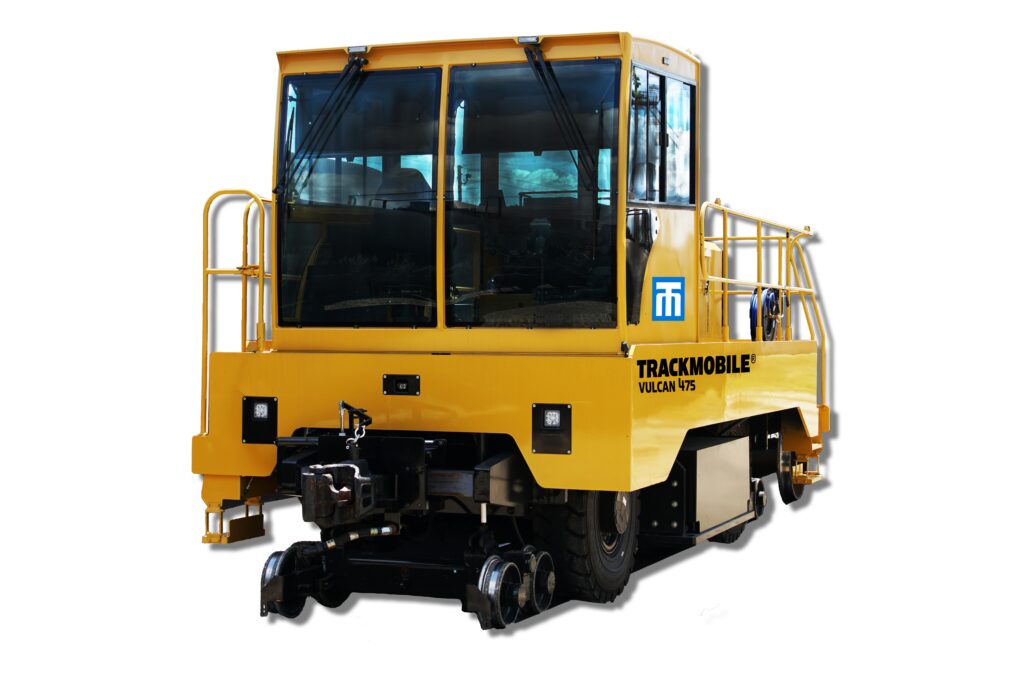

Trackmobile’s Vulcan is designed to take on the most severe rail conditions, and is equipped with many of the trusted comfort, performance, and safety features that Trackmobile customers can depend on.
Specifications
- Tractive Effort: Maximum Tractive Effort
- Coupling (Single): 60,000 lbf. (267 kN)
- Coupling (Double): 60,000 lbf. (267 kN)
- Length: 340” (8,636 mm)
- Width: 120” (3,048 mm)
- Height: 152” (3,860 mm)
- Machine Weight: 103,000 lbs. (46,818 kg)
Documentation
Additional Information
Choose Reliability.Choose Innovation.Choose Trackmobile.
Performance
- Engine: Cummins Turbo Charged 350HP 8.9L Diesel
- Transmission: John Deere/Funk DF250 Powershift with torque converter
Safety
- Safe-T-Vue™ 360 degree Camera System
- Transmission mounted hydraulic parking brake
- Air activated locking differentials
Comfort
- Spacious Command Station
- Air Ride, High-Back Swivel Seat
- Two (2) Additional Full-Size Passenger Seats
- Premium HVAC system
- Smooth Ramped throttle control
