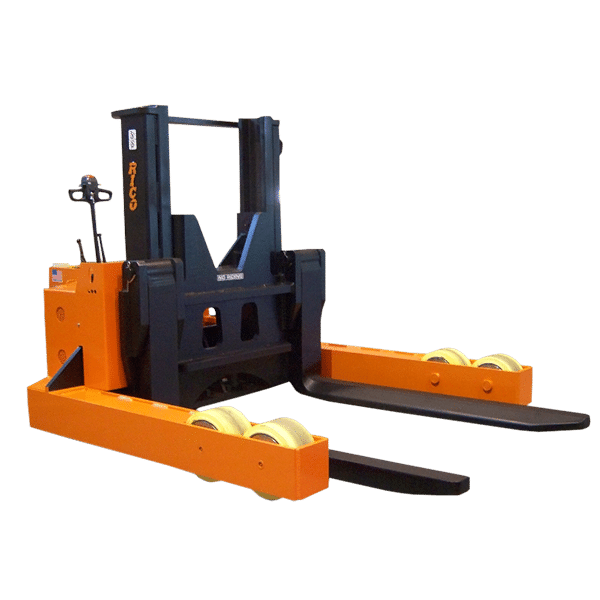

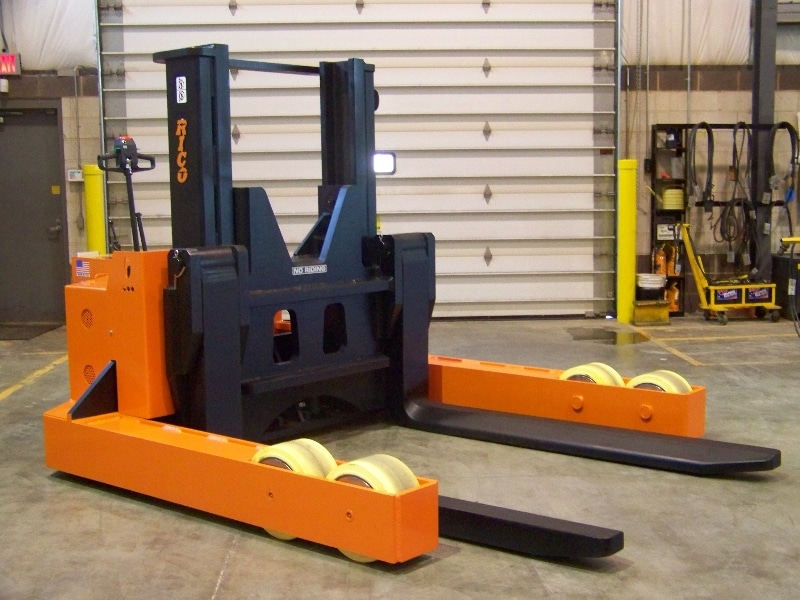

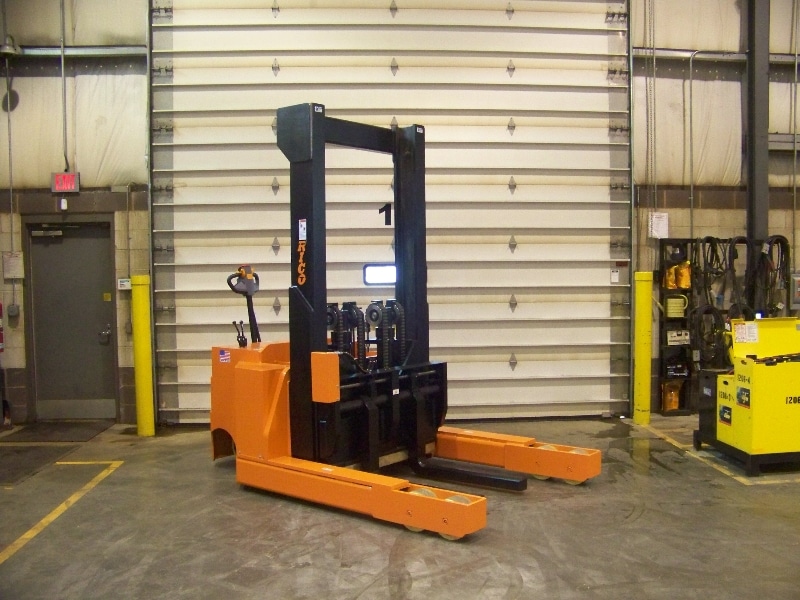

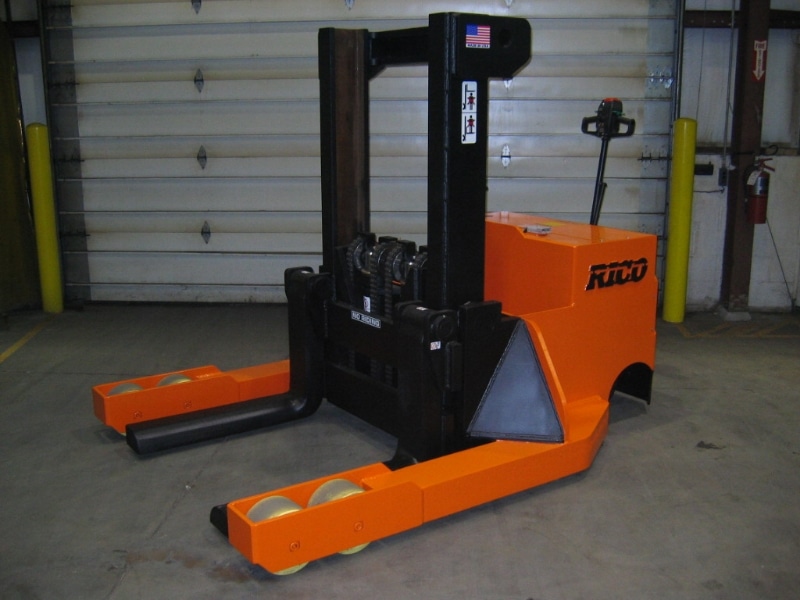

RICO’s Walk Behind Coil Handler is designed for core or outside diameter coil handler. This design is offered in a walk behind version allowing operator maximum maneuverability and control. All vehicles are custom engineered to meet your specific application and towing requirements.
Built to ANSI B56 Safety Standard for Industrial Truck.
Specifications
- Model: Engineered/specialty
- Series: Roll & Coil Series
- Capacity: Up to 40,000 lbs
- Operator Type: Walk Behind
- Steering: Fully fluid linked power steering system
- Truck Type Designation: E or EE
Features
- All steel constructed chassis for superior strength
- Ergonomic handle controls with multifunction options
- Low profile drive end for increased visibility
- DC or AC stationary mounted high torque drive motors
- Toe protection guarding
- Integrated emergency reversing switch
- Electric push button or mechanical infinite variable lift controls
- Various lift heights and capacity designs
- All instrument are positioned within clear visibility of the operator
- Single or dual drive vertically mounted helical beveled gear transmissions
- Narrow drive end for superior maneuverability
- Horn, key switch, hour meter and battery discharge indicator
- Forged tapper forks specific for you application
- On board service diagnostic system
- Fully fluid linked power steering system
- Speed cut back switch
- Fiber Optic Camera system for easy accurate load spotting
- Ram Style coil handling
- Mechanical or electric operated handle braking
- Programmable control with onsite customization
- Manual or power positioning forks
- Rolled or machined upright mast rails with clear view visibility
- Pendent powered controls for precise operation
- Open drive compartment and easy access panels
- Industry standard components
Additional Information
DRIVE SYSTEM OFFERS
Design System Offers
- Narrow drive end for superior maneuverability.
- Forged tapper forks specific for you application.
- Ram Style coil handling.
- Rolled or machined upright mast rails with clear view visibility.
- Pendent powered controls for precise operation.
- Manual or power positioning forks.
- Fiber Optic Camera system for easy accurate load spotting.
- Various lift heights and capacity designs.
- Ergonomic handle controls with multifunction options.
- All steel constructed chassis  for superior strength.
SAFETY & SERVICE FEATURES
- Low profile drive end for increased visibility
- Integrated emergency reversing switch
- Horn, key switch, hour meter and battery discharge indicator
- Open drive compartment and easy access panels
- Toe protection guarding
- Speed cut back switch
- On board service diagnostic system
