A groundbreaking solution for heavy-duty applications

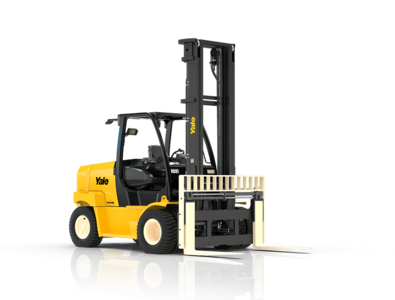

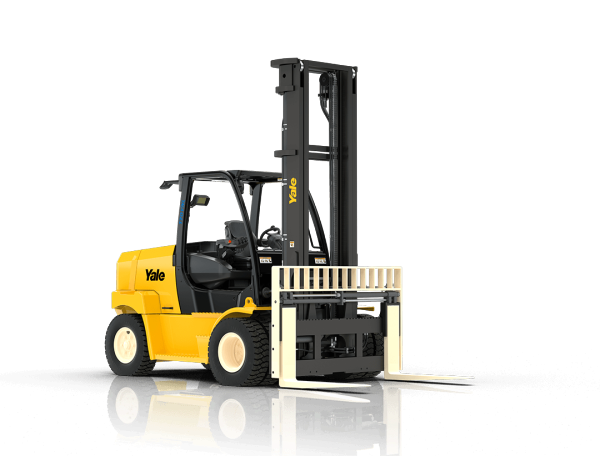

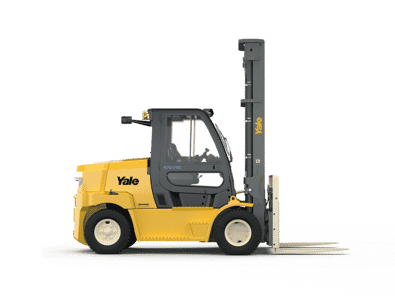

The Yale® ERP155-190VNL sit-down counterbalance forklift breaks new ground as a high capacity, indoor/outdoor option powered by an integrated, high voltage lithium-ion battery. The powerful 350-volt lithium-ion technology and electric drivetrain provide the ICE-like performance that heavy-duty applications require, with zero emissions, quick opportunity charging and no maintenance.
Specifications
- Capacity: 15,500 - 19,000 lbs
- Max Height: 171
- Max Weight: 19,000 lbs
- Series Title: ERP155-190VNL
- Type: 4 Wheel Electric Forklift Truck Pneumatic Tire
Features

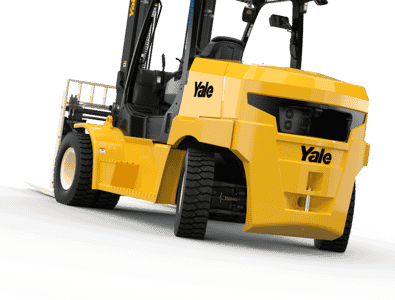

- Maneuverability - Navigate through tight spaces and efficient layouts with a shortened counterweight design and Turn Assist System (available on the ERP155-170SVNL models only) that enable a tight turning radius and right angle stack.
- Maintenance-free battery - Simply plug in and charge with no extra steps thanks to the 350-volt, high-power sealed lithium-ion battery that's completely maintenance free.
- Indoor and outdoor usage - Streamline your lift truck fleet with the multipurpose ERP155-190VNL, designed to work both indoors and out, eliminating the need for separate units.

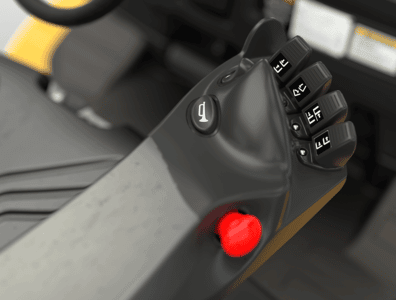

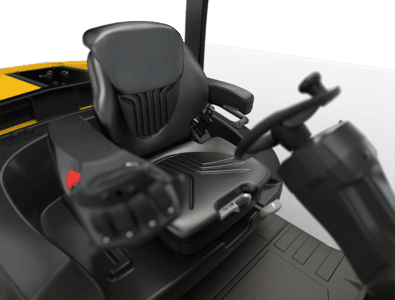

- Operator comfort - Help keep operators focused and productive with low noise levels and no emissions, while a standard air ride seat and hydraulic mini-lever controls further boost operator comfort.
- Fast charging, more uptime - Keep business moving with the integrated lithium-ion battery that charges faster and has a longer overall life than a traditional lead acid battery. In less than 90 minutes, the lithium-ion battery charges from lift lock-out (12% state of charge) with the required charger, and stays at over 90% efficiency throughout operation.
Documentation
Additional Information
Model Table
| Model | Load Capacity (lbs) | Lift Height | Battery Capacity Voltage | Weight |
|---|---|---|---|---|
| ERP175VNL | 17500lbs | 350V Integrated lithium-ion / Traction Motor Type – Permanent Magnet | ||
| ERP190VNL | 19000lbs | 350V Integrated lithium-ion / Traction Motor Type – Permanent Magnet | ||
| ERP155VNL | 15500lbs | 350V Integrated lithium-ion / Traction Motor Type – Permanent Magnet | ||
| ERP170VNL | 17000lbs | 350V Integrated lithium-ion / Traction Motor Type – Permanent Magnet |
