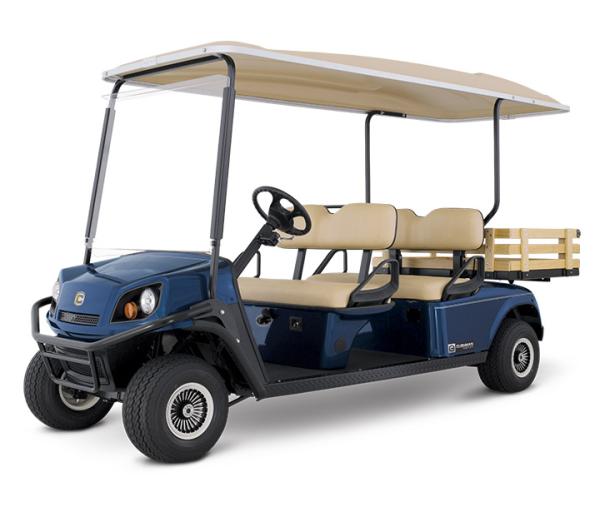

Throw your bags and supplies in the back and let’s get moving. The Shuttle™ 4 offers extra space for luggage, gear and more, so you can help workers, guests and volunteers get all their stuff wherever it needs to go quickly.
Specifications
- Air Cleaner: Industrial Rated Dry Filter
- Battery (Qty/Type): One, 12V Maintenance Free
- Bed Load Capacity: 400 lb (181 kg)
- Body & Finish: Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear)
- Cargo Deck Capacity: 9-cu-ft (0.25 m3)
- Cargo Deck Material: Wood Stake Sides
- Cooling System: Air Cooled
- Curb Weight: 936 lb (425 kg)
- Drive Train: Continuously Variable Transmission (CVT)
- Electrical System: Starter/Generator. Solid State Reg.
- Frame: Welded Steel w/ DuraShield™ Powder Coat
- Fuel Capacity: 6 Gallon (22.7 L) Tank
- Gear Selection: Forward - Reverse
- Ground Clearance: 4.3 in (11 cm)
- Horsepower (KW): 13.5 hp (10.1 kW) Exceeds SAE J1940 Std
- Key or Pedal Start: Pedal
- Lubrication: Pressurized Oil System
- Oil Filter: Spin-On
- Overall Height: 48.6 in (123 cm) (w/o Roof) 72.0 in (183 cm) (w/ Struts & Roof)
- Overall Length : 135.0 in (343 cm)
- Overall Width: 48.5 in (123 cm)
- Parking Brake: Self-Compensating, Single-Point Engagement
- Power Source: 4-Cycle, 24.5 ci (401cc) Low Emission
- Rear Axle Ratio: 11.42:1(Forward) 15.78:1(Reverse)
- Seating Capacity: 4-Person
- Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
- Speed: 16 mph +/- 0.5 mph (26 kph +/-0.8 kph
- Standard Color: Patriot Blue
- Steering: Self-Compensating Rack & Pinion
- Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
- Tires: Links 18 x 8.5 - 8 (4 Ply Rated)
- Transaxle: Differential w/ Helical Gears
- Valve Train: Single Cylinder OHV
- Vehicle Load Capacity: 1200 lb (544 kg)
- Wheel Base: 93.5 in (237 cm)
- Wheel Track: 34.2 in (87 cm) Front 38.0 in (97 cm) Rear
Features
- 13.5-hp Kawaskai® Gas Engine
- 48V Electric Drivetrain
- 4-Passenger Seating
- 1,200-lb Vehicle Load Capacity
- 9-cu-ft Cargo Deck
