Overview

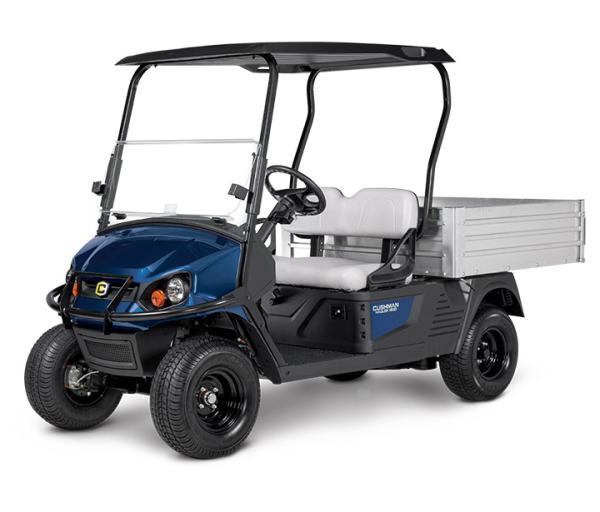

Your work is unforgiving. Let the Hauler® 1200 help carry the load. With a customizable bed and practical dash design, it’s ready to transport the tools and equipment every job needs.
Specifications
- Air Cleaner: Dry Cartridge
- Battery (Qty/Type): One, 12V Maintenance Free
- Bed Load Capacity: 800 lb (363 kg)
- Body & Finish: Injection Molded TPO
- Cargo Deck Capacity: 12-cu-ft (0.34 m3)
- Cargo Deck Material: Roto-Molded Polyethylene
- Cooling System: Air Cooled
- Curb Weight: 980 lb (445 kg)
- Drive Train: Continuously Variable Transmission (CVT)
- Electrical System: Starter/Generator. Solid State Regulator
- Frame: Welded Steel with DuraShield™ Powder Coat
- Fuel Capacity: 6.0 Gallon (22.7 L) Tank
- Gear Selection: Forward - Reverse
- Ground Clearance: 3.5 in (8.9 cm)
- Horsepower (KW): 13.5 hp (10.1 kW) Exceeds SAE J1940 Std.
- Key or Pedal Start: Pedal
- Lubrication: Pressurized Oil System
- Oil Filter: Spin-On
- Outside Clearance Circle: 21.5 ft (6.6 m)
- Overall Height: 46.5 in (118 cm) (w/o Roof) 70.5 in (179.1 cm) (w/ Struts & Roof)
- Overall Length: 115 in (292.1cm)
- Overall Width: 49.4 in (125.5 cm)
- Parking Brake: Self-Compensating, Single-Point Engagement
- Power Source: 4-Cycle, 24.5 ci (401cc) Cylinder
- Rear Axle Ratio: 11.42:1(Forward) 15.78:1(Reverse)
- Seating Capacity: 2-Person
- Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
- Speed: 14.5 mph ± 0.5 mph (23.3 kph ± 0.8 kph)
- Standard Color: Forest Green / Patriot Blue
- Steering: Self-Compensating Rack & Pinion
- Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
- Tires: 18 x 8.5 - 8
- Towing Capacity: 1500 lb (680 kg) max
- Transaxle: Differential w/ Helical Gears
- Valve Train: Single Cylinder OHV
- Vehicle Load Capacity: 1200 lb (545 kg)
- Wheel Base: 76.8 in (195.1 cm)
- Wheel Track: 35 in (88.9 cm) Front 38.5 in (97.8 cm) Rear
Features
- 800-lb Bed Load Capacity
- 2-Passenger Seating
- 1,500-lb Towing Capacity
- 1,200-lb Vehicle Load Capacity
- 13.5-hp Kawasaki® Gas Engine
- 12-cu-ft Cargo Bed
Additional Information
Model Table
| Hauler 1200 Gas | |
|---|---|
| Frame | Welded Steel with DuraShield™ Powder Coat |
| Body & Finish | Injection Molded TPO |
| Standard Color | Forest Green / Patriot Blue |
| Overall Length | 115 in (292.1cm) |
| Overall Width | 49.4 in (125.5 cm) |
| Overall Height | 46.5 in (118 cm) (w/o Roof) 70.5 in (179.1 cm) (w/ Struts & Roof) |
| Wheel Base | 76.8 in (195.1 cm) |
| Wheel Track | 35 in (88.9 cm) Front 38.5 in (97.8 cm) Rear |
| Ground Clearance | 3.5 in (8.9 cm) |
| Cargo Deck Capacity | 12-cu-ft (0.34 m3) |
| Cargo Deck Material | Roto-Molded Polyethylene |
| Power Source | 4-Cycle, 24.5 ci (401cc) Cylinder |
| Valve Train | Single Cylinder OHV |
| Horsepower (KW) | 13.5 hp (10.1 kW) Exceeds SAE J1940 Std. |
| Electrical System | Starter/Generator. Solid State Regulator |
| Battery (Qty/Type) | One, 12V Maintenance Free |
| Key or Pedal Start | Pedal |
| Air Cleaner | Dry Cartridge |
| Lubrication | Pressurized Oil System |
| Oil Filter | Spin-On |
| Cooling System | Air Cooled |
| Fuel Capacity | 6.0 Gallon (22.7 L) Tank |
| Drive Train | Continuously Variable Transmission (CVT) |
| Transaxle | Differential w/ Helical Gears |
| Gear Selection | Forward – Reverse |
| Rear Axle Ratio | 11.42:1(Forward) 15.78:1(Reverse) |
| Seating Capacity | 2-Person |
| Curb Weight | 980 lb (445 kg) |
| Vehicle Load Capacity | 1200 lb (545 kg) |
| Bed Load Capacity | 800 lb (363 kg) |
| Towing Capacity | 1500 lb (680 kg) max |
| Outside Clearance Circle | 21.5 ft (6.6 m) |
| Speed | 14.5 mph ± 0.5 mph (23.3 kph ± 0.8 kph) |
| Steering | Self-Compensating Rack & Pinion |
| Suspension | Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) |
| Service Brake | Rear Wheel Mechanical, Self-Adjusting Drum |
| Parking Brake | Self-Compensating, Single-Point Engagement |
| Tires | 18 x 8.5 – 8 |
