Minimal Forklift Maintenance with Maximum Efficiency

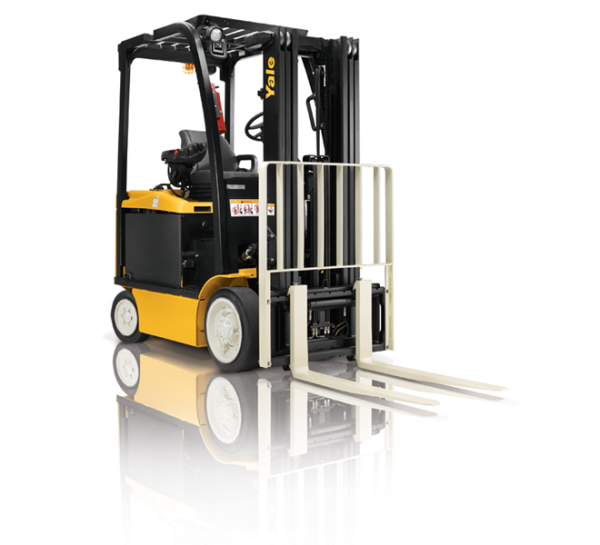

The ERC045-070VG four wheel electric forklift truck is one of the most operator-friendly lift trucks in the industry. Its ergonomic design maximizes productivity and reduces operator fatigue and downtime. Designed for indoor use, this versatile lift truck comes with lower maintenance costs and is easy to service due to the highly efficient AC traction and hydraulic motors. Between the lower operating expenses, reduced maintenance costs, extended maintenance intervals and increased throughput, the ERC045-070VG provides outstanding productivity and productivity cost savings.
Specifications
- Capacity: 4,500 - 7,000 lbs
- Max Height: 288
- Max Weight: 7,000 lbs
- Series Title: ERC045-070VG
- Type: Electric Four-Wheel Cushion Tire
- Weight: lbs
Features
- The innovative Intellix VSM (Vehicle Systems Manager) allows the operator to track all major truck functions and alert them to potential problems before they become an issue.
- The ERC045-070VG series trucks are designed with a focus on "human engineering" to minimize operator strain and fatigue.
- Easy-operating optional AccuTouch e-hydraulic mini-levers & armrest give contoured, soft-touch surfaces, thumb actuated direction selection and seat-side power disconnect.
- Competitive testing shows that the ERC045-070VG electric rider product offers the best energy efficiency (energy used per load moved) of any lift truck in its class in North America.
Documentation
Additional Information
Model Table
| Model | Load Capacity (lbs) | Lift Height | Battery Capacity Voltage | Weight |
|---|---|---|---|---|
| ERC050VG | 5000lbs | 264 | 36V / 1100-1300Ah – 48V / 800-1000Ah – 80V / 375-400Ah | |
| ERC070VG | 7000lbs | 264 | 36V / 1600Ah – 48V / 1200Ah – 80V / 600Ah | |
| ERC055VG | 5500lbs | 264 | 36V / 1100-1300Ah – 48V / 800-1000Ah – 80V / 375-450Ah | |
| ERC065VG | 6500lbs | 264 | 36V / 1500-1600Ah – 48V / 1100-1200Ah – 80V / 600Ah | |
| ERC060VG | 6000lbs | 264 | 36V / 1100-1300Ah – 48V / 800-1000Ah – 80V / 375-450Ah | |
| ERC045VG | 4500lbs | 264 | 36V / 1100-1300Ah – 48V / 800-1000Ah – 80V / 375-400Ah |
