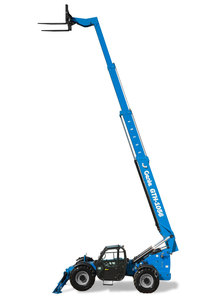

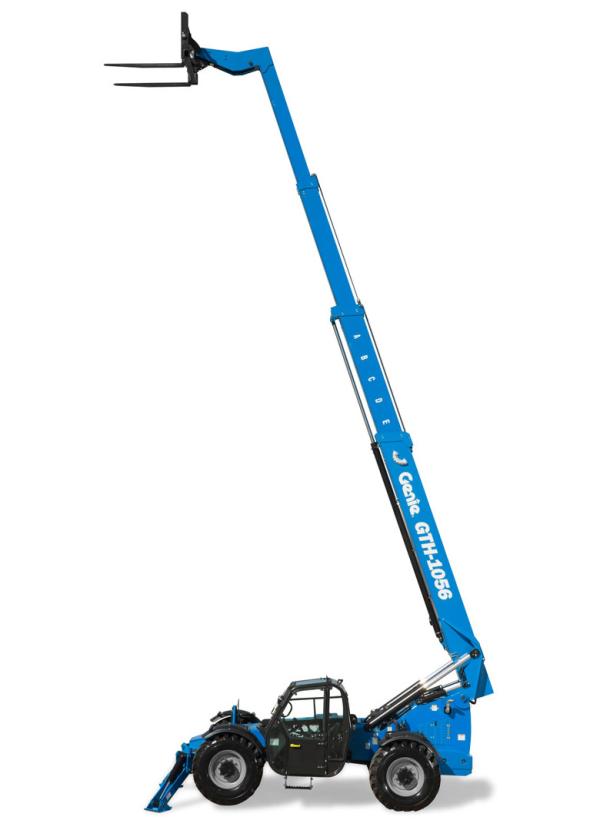

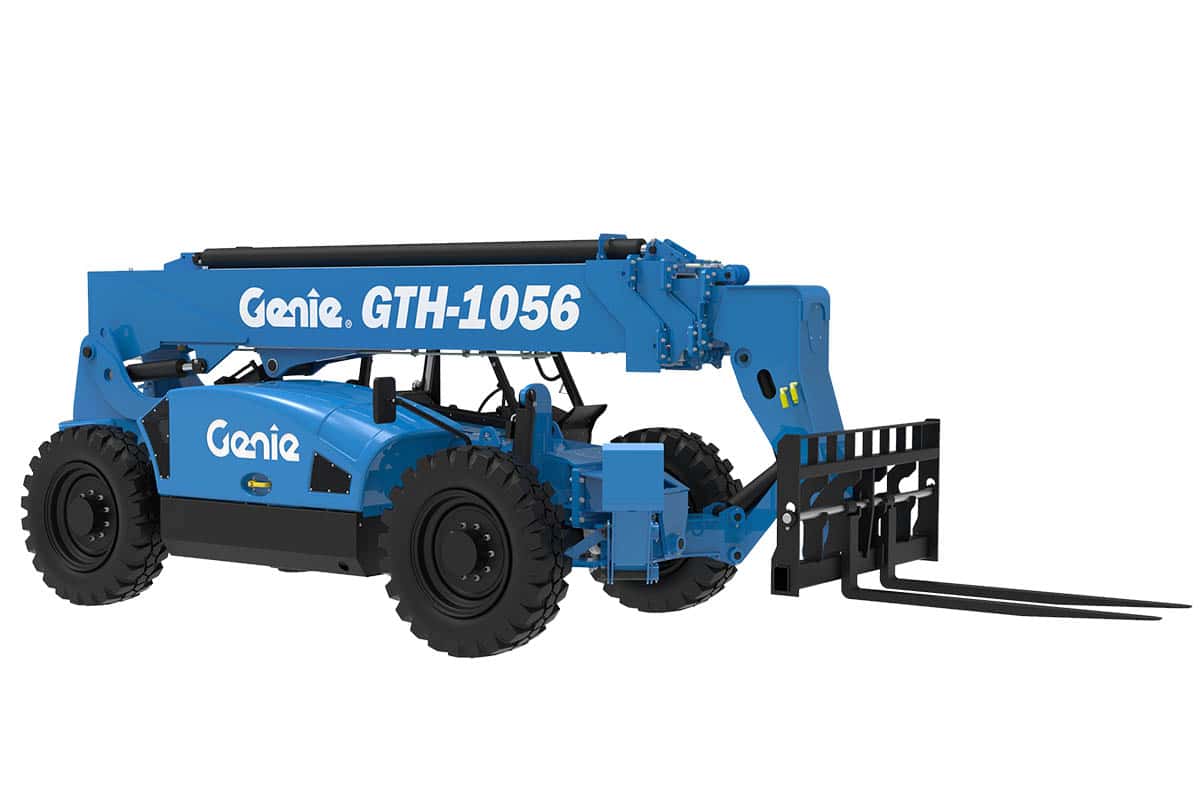

The new Genie® GTH™-1056 telehandler. Extensively field tested to validate performance, the GTH-1056 has been purposefully designed to lower total cost of ownership by 10% while delivering 20% more lift capacity at max height in a machine with a 30% stronger design. The GTH-1056 builds on popular features found on the proven GTH-636 and GTH-846 models, including a side-mounted engine and stronger boom design, to deliver a rugged, reliable telescopic handler with a 10,000 lb (4,536 kg) capacity.
Overview
- 74 HP, DEF-free engine option offering a low-maintenance solution

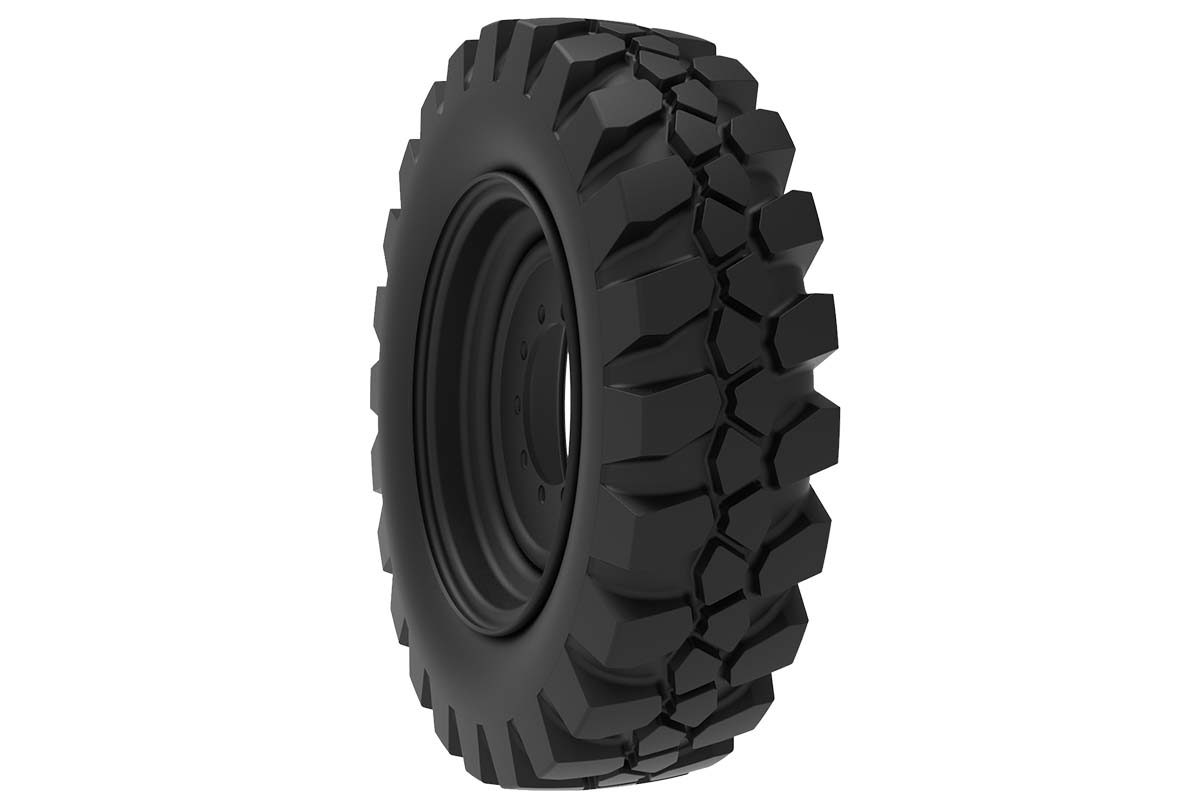

- New long-life Enduro A/T tires, a hybrid, all-terrain tread design exclusive to Genie
- Able to lift 5,000 lbs. (2,268 kg) at maximum height of 56 ft. 7 in. (17.25 m), and 3,000 lbs.
Specifications
- Max Lift Capacity: 10,000 lb | 4,536 kg
- Max Forward Reach: 42 ft | 12.80 m
- Capacity at Max Reach: 3,000 lbs | 1,361 kg
- Max Lift Height: 56 ft 10 in | 17.32 m
- Capacity at Max Height: 4,000 lb | 1,814 kg
Additional Information
Options
Cab Configuration
- Front and top glass
- Fully enclosed cab: full glass, heater, defroster, wipers, washer and split door
- Fully enclosed cab with air conditioner: full glass, heater, defroster, wipers, washer and split door
Tire Options
- Foam-filled rough terrain tires
- Solid rough terrain tires
Carriage/Attachment Options
- 48 in. manual Quick-Attach™ carriage
- 60 in. QA carriage
- 72 in. QA carriage
- 48 in. QA side tilt (rotating) carriage
- 60 in. QA side tilt (rotating) carriage
- 72 in. QA swing carriage (45 deg L/R)
- 14 ft.QA Variable reach truss boom
Fork Options
- 48 in. pallet forks (2 x 4 x 48 in.)
- Set of two 60 in. pallet forks, 2 x 4 x 60 in.
- Set of two 72 in. pallet forks, 2 x 4 x 72 in.
- Set of two 60 in. lumber forks, 1.75 x 7 x 60 in.
- Set of six 48 in. cubing tines, 2 x 2 x 48 in.
Accessories
- Electric block heater
- Dual joystick control
- Fire extinguisher
- Flashing beacon
- Right side steel mesh screen for open canopy
- Work lights: High output LED cab, boom, rear
- Road and Work lights: Work lights and front turn/headlights, rear stop/turn/tail
- Rear proximity alarm
- Rear proximity alarm ready
