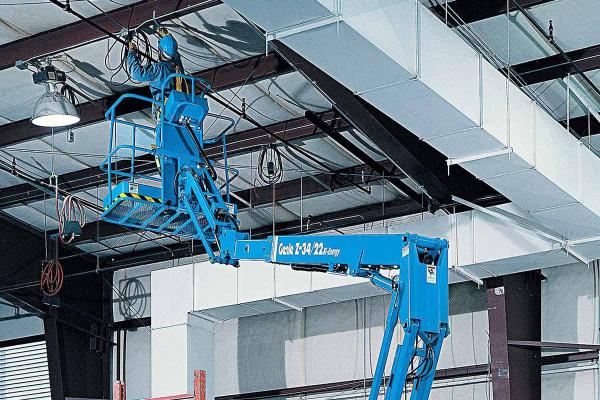

Genie Z™-34/22 N
Genie Electric and Bi-Energy machines offer quiet, emission-free operation in the most sensitive work environments.
Specifications
- Horizontal Reach:: 22 ft 3 in (6.78 m)
- Up & Over Clearance:: 15 ft 2 in (4.62 m)
- Working Height*:: 40 ft 6 in (12.52 m)
Features
- Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability
- 4 ft (1.22 m) jib boom has 139° range of motion allowing positioning above or below horizontal
- Ideal for confined work spaces at only 58 in (1.47 m) wide with zero tailswing
- Rolls through standard double doorways
- Automatic hill and ramp braking
- Compact storage length of 13 ft 9 in (4.2 m) and width of 58 in (1.47 m)
- Easy ascent and descent along a vertical plane without retracting or extending the boom
- Self-leveling platform features 180° powered horizontal rotation for precise positioning and easy operation
- Maximum drive performance of 35% gradeability and 4.0 mph travel speed
